| Specification | Description |
|---|---|
| Bar Capacity | 32 mm |
| Max Machining Length | 320 mm (12.6") |
| Max Drilling Diameter | 0.47" |
| Max Tapping Diameter | 0.39" |
| Max Back Spindle Chucking Diameter | 1.25" |
| Max Back Spindle Drilling Diameter | 0.39" |
| Max Back Spindle Tapping Diameter | 0.31" |

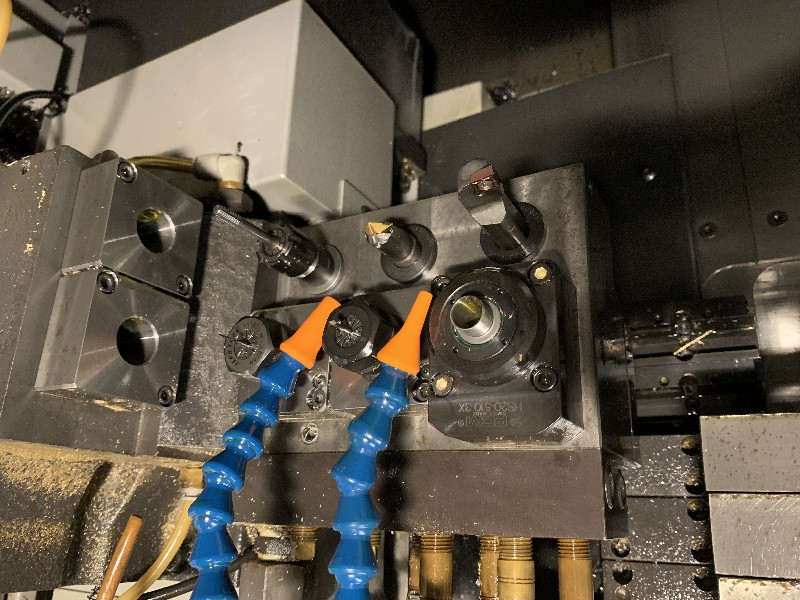

| Tool Positions | 24 Max |
| Live Tool Positions | 6 Main |
| 4 Sub | |
| Live Tool Speed | 5,000 RPM |
| Spindle Speeds (Main) | 8,000 RPM |
| Spindle Speeds (Sub) | 8,000 RPM |
| Main Spindle Motor | 7.4 HP |
| Back Spindle Motor | 5 HP |
| Machine Dimensions | 79.5" x 66" x 79.5" |
| Weight | 7,500 Lbs. |
