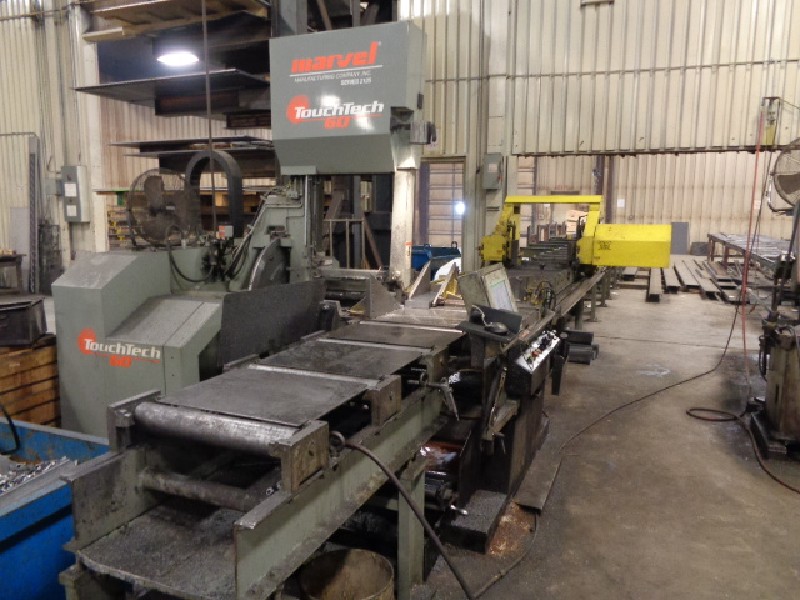

Marvel 2125 Touch Tech 60 Tilt Frame Automatic Vertical Band Saw
Marvel 2125 Touch Tech 60
Age: 2008
Stock Number: 1053
The TouchTech Cutting Edge control incorporates Windows NT software and conversational programming. This new control combines ease of operation with increased flexibility and customization. Programming of automatic jobs includes an illustration of the finished part. Operators can choose either factory presets for blade speed and tilt angle or customized settings for their specific needs.
Click to view larger photo
| Specification | Description |
|---|
| Capacity | 20" X 25" |
| Capacity @ 45 Degrees | 20" X 17" |
| Capacity @ 60 Degrees | 20" X 11.25" |
| Tilt | Hydraulic 0-60 Left and Right |
| Blade Size | 17' 6" X .042 X 1.25 |
| Blade Speeds | 30 to 650 FPM |
| Motor Drive | 7.5 HP |
| Weight | 8,480 lbs. |
Equipped With:
Programmable Touch Screen (Currently runs off Mouses)
Windows NTŪ based intuitive Control
Blade Tension
Coolant System
Hydraulic Vises
Recirculating Linear Ball Ways
Variable Vise Pressure
Interchangeable Vise Jaws
10 Ft Marvel Shuttle Table
5 Ft Exit Table
Sensorless Vector Control Blade Drive
Wired 460v/3Ph/60HZ
All Available Manuals and Misc. Accessories
