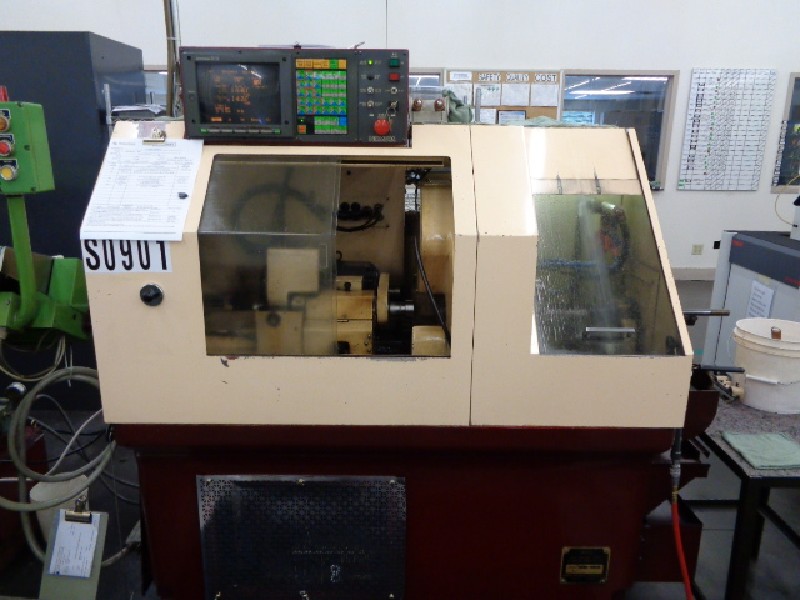

Nomura SN-160 CNC Swiss Lathe with Barfeed

Nomura SN-160 CNC Swiss Lathe with Barfeed

Stock Number: 1089

Nomura SN 160

Age: 1987

Catalog Specifications Tooling: Turning & Boring: 5 Positions On-Center Front End Working: 3 Positions Drilling Capacity: 5/16" Tapping Capacity: 1/4- 20 UNC


Click to view larger photo

SpecificationDescription
Max Bar Diameter Round0.625"
Max Bar Diameter Hexagon0.53125"
Max Bar Diameter Square0.4375
Head Stock Stroke6"
Spindle Bore (ID Draw Tube)0.67"
Spindle Motor3 HP
Spindle Speeds (Stepless)500 - 10,000 RPM
Dimensions (Machine)67" X 38" X 65"
Weight3,200 lbs.

Equipped With:
Meldas 310L CNC Control
Collet Chuck

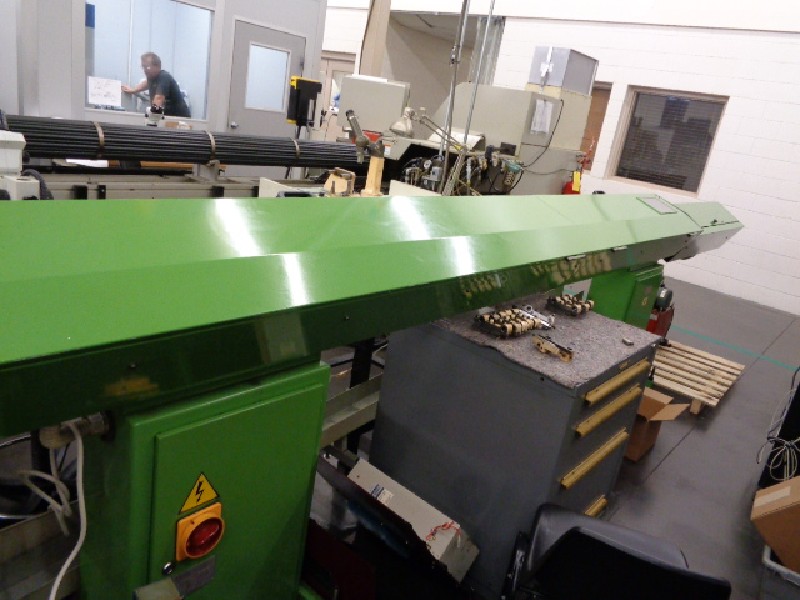

Iemca Auto Load Barfeed
Coolant System
Parts Catcher
Parts Chute

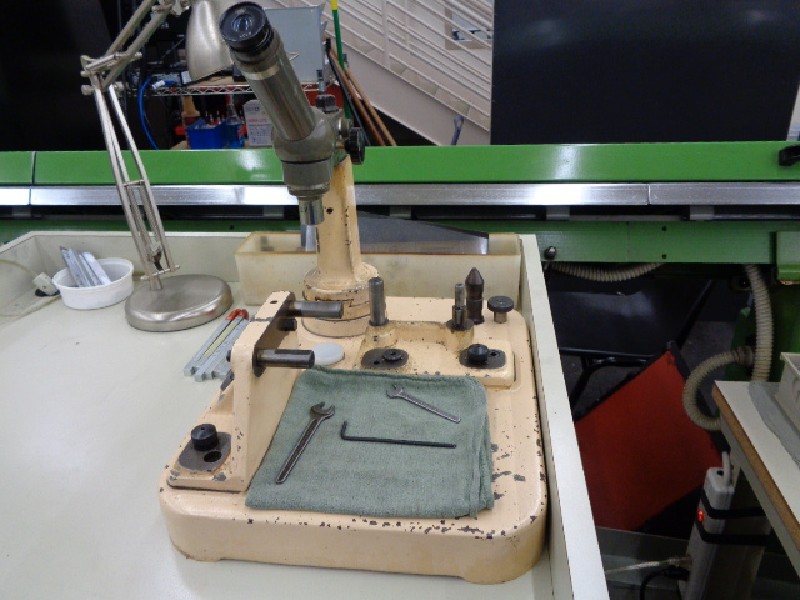

Tool Presetter
Lots of Tooling
All Available Manuals
