Catalog Specifications:

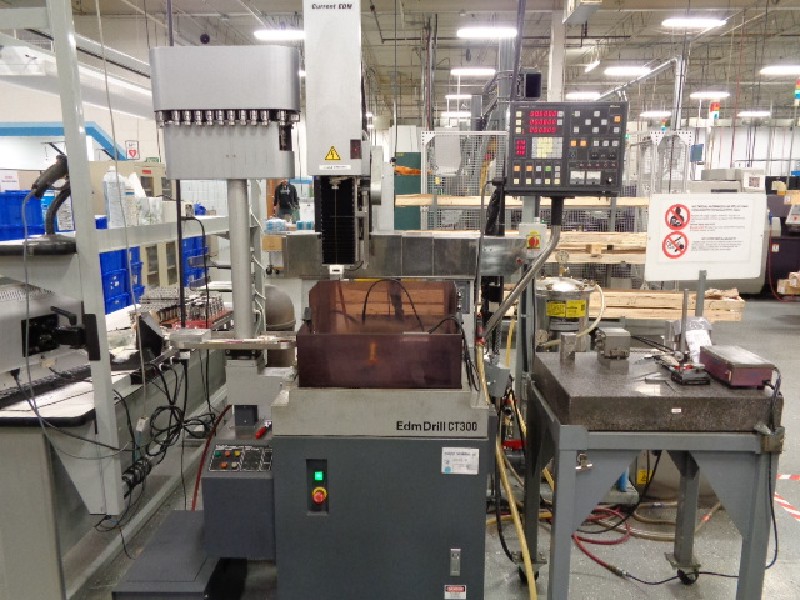

The CT300 is a compact CNC EDM drilling machine. Its fixed-bridge design enables extremely accurate positioning and drilling. The CT300 uses precision linear ways on its X, Y and Z axis for trouble-free operation.
Click to view larger photo
Specification
Description
Max. Workpiece
12" X 12"
X Axis Travel
12"
Y Axis Travel
8"
Z Axis Travel
16"
W Axis Travel
10"
Hole Diameter (Min)
0.004"
Hole Diameter (Max)
0.25"
Tool Capacity
24 Station
Machine Dimensions
24" x 28" x 78" H
Machine Weight (w/Filtration Unit)
1,000 Lbs.
Voltage Power
208 - 220V /3 Phase
Equipped With:
EDM Drill CT300 CNC Controller
Filtration System
Precision Drilling Head with 16 inch Servo Stroke
57 Peak Amp Power Supply
High-Pressure Dielectric Fluid Pump
All Available Manuals
